Grit Washer – EQUIP GRIT


EQUIP GRIT washer is used for the separation and cleaning of sandy material from wastewater. These machines consist of a conical decantation hopper, provided with an agitation system that give to sandy waste water a rotational movement; this rotation facilitates the sedimentation process and, at the same time, keeps in suspension the organic matters.

The hopper’s bottom is fed with clean water that creates a counterflow that removes the organic material which is then evacuated from a pipe placed at the upper side of the hopper. The washed sands are removed from the bottom of the hopper by a shafted screw conveyor, while the output cleaned water outflows from a pipe placed at the top of the hopper. The water enters the hopper through the inlet scroll; the volume is kept in motion by the agitator central that a rotational movement, whose purpose is to facilitate the sedimentation of the sand and at the same time to maintain suspension of the organic material.

The sand, on its way towards the bottom is further washed clean water fed in countercurrent, to then be extracted from the cochlea. The water countercurrent also has the task of facilitating the ascent of the organic substances, that are then evacuate at regular intervals by a special exhaust pipe. The clarified water is instead evacuated by a second conduit placed in the upper part of the conical hopper. The constant rotational motion of the water mass allows the sand to pass from the hopper to the discharge screw, which conveys it to the exit.

Characteristics & Benefits


Equipment 2 in 1

Residual Organic Content: ≤ 5 %

Grit separation: ≥ 90% for particles up to 200 μm

Trough Protection with HDPE liner for the screw

EQUIP GRIT

EQUIP GRIT est utilisé pour la séparation et le nettoyage des sables des eaux usées. Cet équipement est constitué d’une trémie de décantation conique munie d’un système d’agitation qui donne aux eaux usées sableuses un mouvement de rotation. Cette rotation facilite le processus de sédimentation tout en maintenant en suspension les matières organiques. Le fond de la trémie est alimenté en eau propre et crée un contre-courant qui pousse les matières organiques afin d’être évacuée par un tuyau placé sur la partie supérieure de la trémie.Les sables lavés sont soutirés du fond de la trémie par un convoyeur à vis sans fin pendant que le volume d’eau est maintenu en mouvement par l’agitateur central.
download PDF

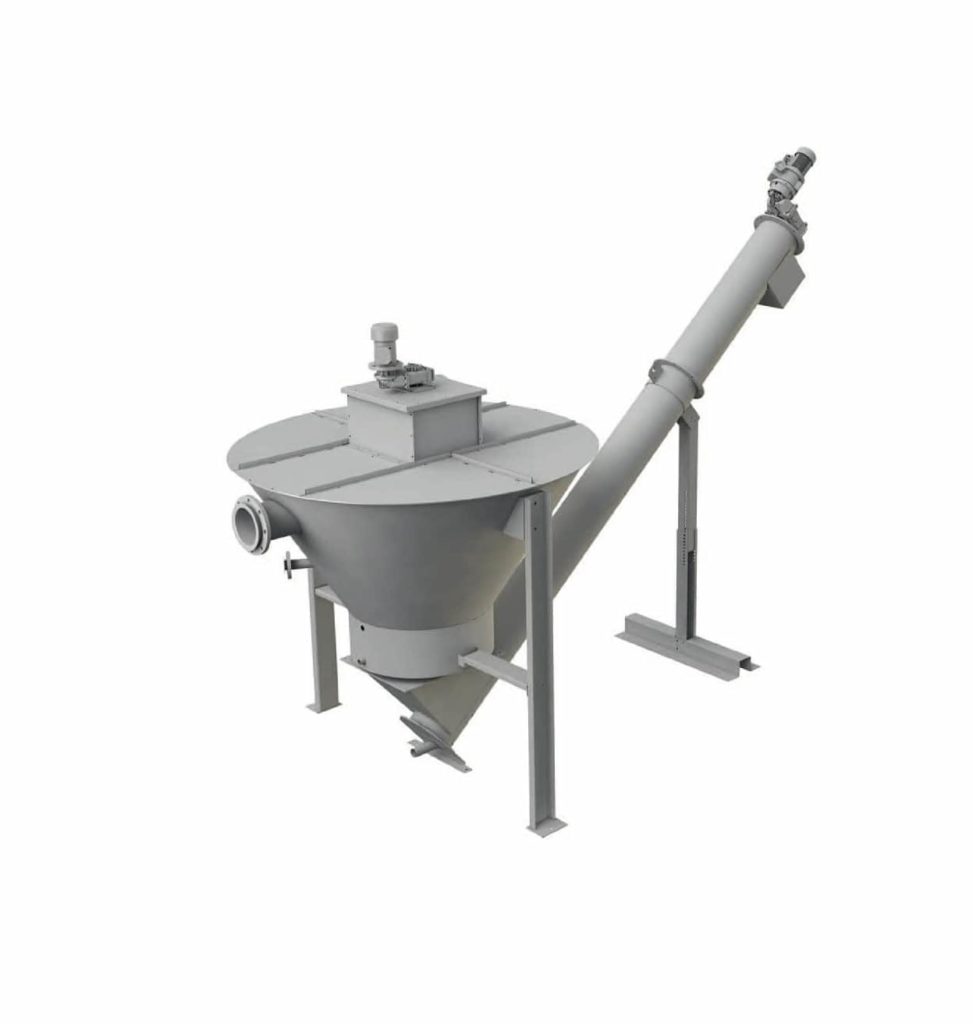

Grit Washer- EQUIP GRIT

EQUIP GRIT Sand Classifier washer in operation
