Automatic – BASKET SCREEN


The BASKET SCREEN is an automatic vertical screen generally installed in a pump station and lift station to protect the pumps from clogging and trash coming out of the discharge pipe. The screen is facing the raw water and captures all the possible waste. The basket is designed to receive way more waste than a vertical wire rack which requires a rake that continuously comes up and down. The basket can handle any waste, from wipes to rocks with no jamming.

operation of the Basket Screen by Equipwater

Features & Benefits


Protect your pumps

Capture all sizes of wastes, wipes, wood, rocks, bottles

Remove all the waste captured in only one cycle

Retrofit in any Pump Station & Lift Station

No depth limit

Technical Characteristics
FlowUp to 200 m3/h
Opening filtration: Bars or perforated plate3 to 15 mm
Width of the screenUp to 900 mm
DepthNo limits
Installation angle90° Vertical
Frame materialStainless steel 304 or 316L
Guides materialPA 66 + MO Molybdenum
Surface treatmentScouring and passivation
Power gear motor0.37 kW to 1 kW
Power supply3 phases, 400V, 50 Hz

BASKET SCREEN

Vertical Basket Screen - Equipwater - special Pump Station and Lift station

Low maintenance

Easy installation

Reliable & Automatic

Dégrilleur Panier - Basket Screen pour poste de relevage par Equipwater
Bas du dégrilleur panier automatique basket screen - equipwater
Dégrilleur Panier - Basket Screen pour poste de relevage Equipwater

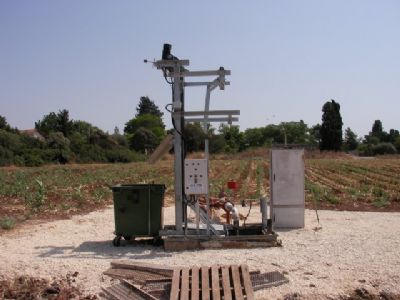

Bas de l'installation Basket Screen By Equipwater
dégrilleur panier automatique - Basket Screen - equipwater
Dégrilleur Panier - Basket Screen pour poste de relevage Equipwater
Dégrilleur Panier - Basket Screen pour poste de relevage Equipwater
Dégrilleur Panier - Basket Screen pour poste de relevage Equipwater

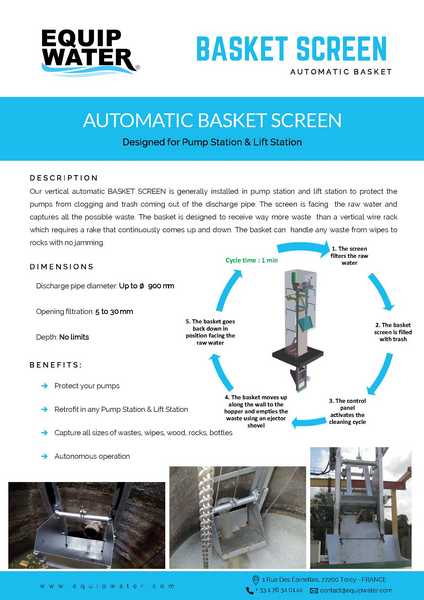

download PDF

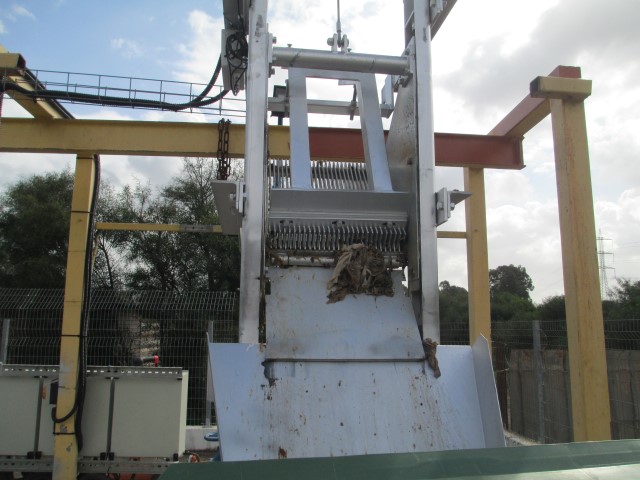

 BASKET SCREEN in operation

Basket Screen in operation

3D Visual of the automatic basket screen

Installation of the basket at the bottom of the equipment
