Vertical Bar Screen XL – VERTI SCREEN


The VERTI SCREEN is a vertical wastewater filtration equipment specially designed for deep channels and difficult access. Water screening is carried out by a multitude of vertical bars catching the waste. A rake comes across to pick up the waste through the screen and goes back up to the top of the machine. A shovel ejects the waste into a hopper that discharges in a compaction system or dumpster.

Features & Benefits


Protect your downstream wastewater process

Catch any trash, wipes, wood, bottles

Trash collection from downstream side

Height of the wire rack up to 1500 mm

Depth up to 10 meters

dégrilleur vertical - Verti Screen by Equipwater
Technical Characteristics
FlowUp to 5000 m3/h
Opening filtration10 mm to 25 mm
Width of the screenFrom 500 to 2000 mm
DepthUp to 10 m
Installation angle90° Vertical
Frame materialStainless steel 304 or 316L
Guides materialPA 66 + MO Molybdenum
Surface treatmentScouring and passivation
Power gear motor1 kW to 2 kW
Power supply3 phases, 400V, 50 Hz

VERTI SCREEN

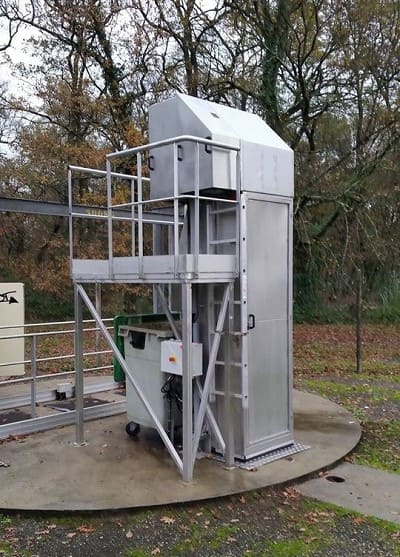

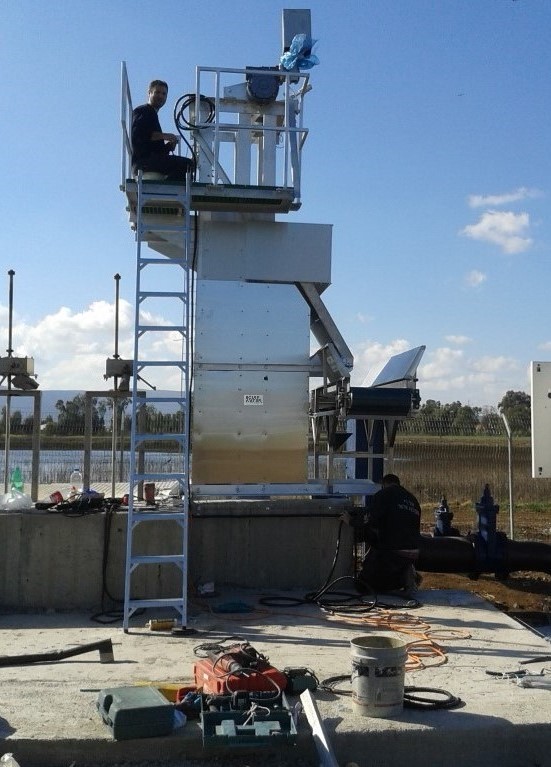

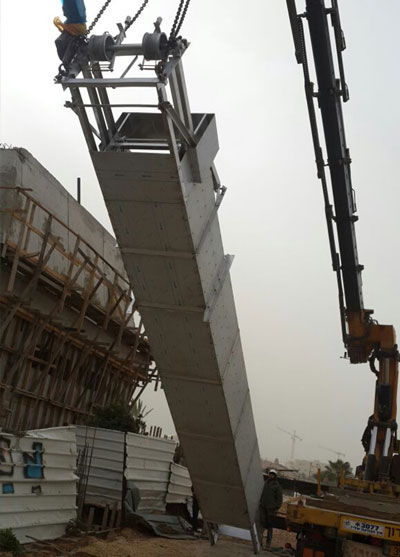

installation avec grue d'un dégrilleur vertical par equipwater

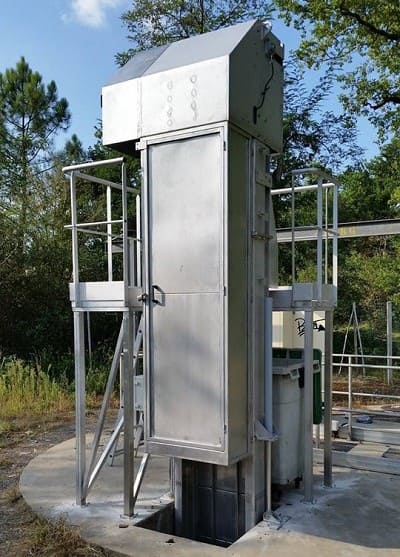

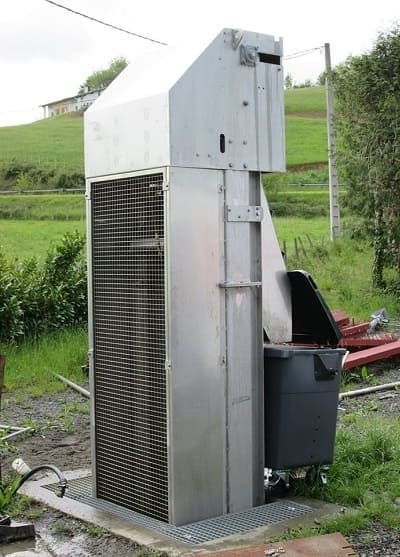

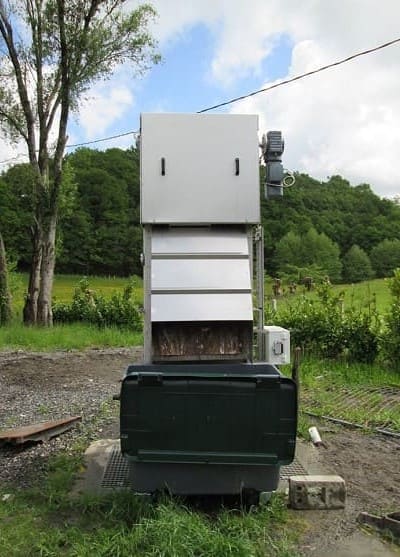

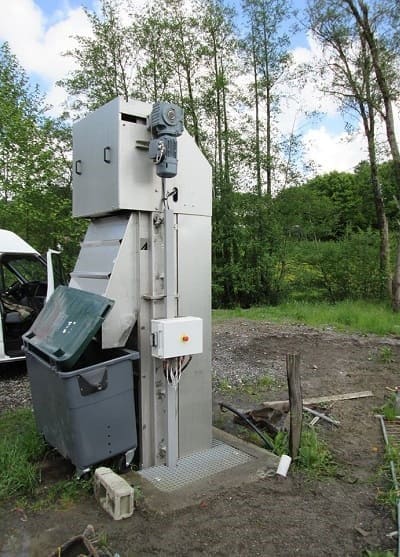

installation d'un dégrilleur vertical dans un poste de relevage equipwater

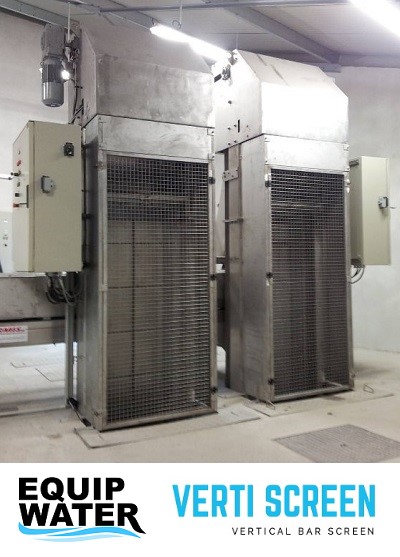

dégrilleur vertical en station d'épuration des eaux usées

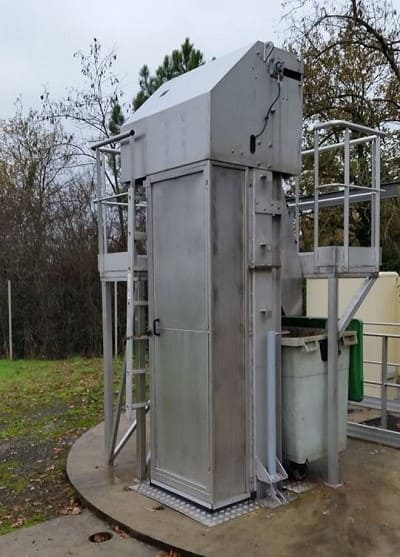

installation d'un dégrilleur vertical entrée de station d'épuration des eaux usées
installation d'un dégrilleur vertical entrée de station d'épuration des eaux usées
installation avec grue d'un dégrilleur vertical par equipwater

High water flow

Sturdy frame

Reliable & Automatic

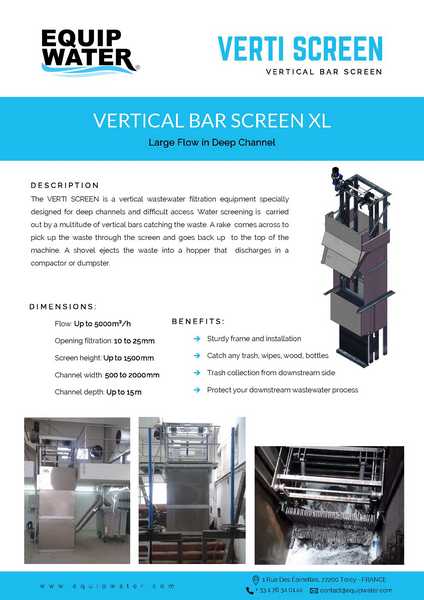

download PDF

Vertical Bar Screen XL in operation
