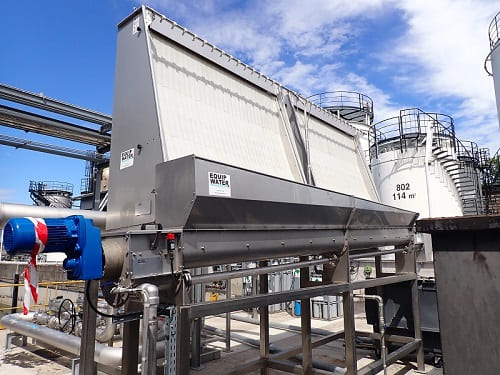

STATIC SCREEN


STATIC SCREEN is used for many solid/liquid separation. It provides an efficient separation especially in the treatment of storm water mixed with solids, hydrocarbons, coming from oil & gas plants. The screen is built with stainless steel wedge wire mesh from 0,25 mm to 1,5 mm to remove any solids above this mesh size.

Characteristics & Benefits


Eco-friendly solution = energy-free equipment

No moving parts, no motors

Low installation costs with no maintenance

Quiet operation

Operation


The operation of the Static Screen is based on the Coanda effect meaning that the liquid to be screened forms a hydraulic attachment to the wedge wire (bars) of the screen. The water goes through the slots while the separated solids stay on the front face of the screen plate. The screen plate has a design with three distinct angles to increase the separation efficiency.
