Inclined Bar Screen – MONO SCREEN


The inclined bar screen MONO SCREEN is an automatic mechanical equipment specially designed for channels in wastewater treatment plant WWTP. The raw water filtration is carried out by an inclined wire rack collecting the waste. A single rake with teeth moved by a cable and gravity picks up the waste deposited on the screen. The waste is ejected by a shovel at the top of the machine into a hopper then a dumpster.

Features & Benefits


Large amount of waste in a single rake

Catch any trash, wipes, wood, bottles

Height of the wire rack up to 2000 mm

Protect your downstream wastewater process

inclined bar screen mono rake by equipwater
Technical Characteristics
FlowUp to 5000 m3/h
Opening filtration10 mm to 25 mm
Width of the screenFrom 500 to 2000 mm
DepthUp to 6 m
Installation angle60° to 75°
Frame materialStainless steel 304 or 316L
Guides material and rollersPA 66 + MO Molybdenum
Surface treatmentScouring and passivation
Power gear motor1.1 kW to 2 kW
Power supply3 phases, 400V, 50 Hz

MONO SCREEN

inclined bar screen mono rake by equipwater
inclined bar screen mono rake by equipwater
inclined bar screen by equipwater
inclined bar screen mono rake by equipwater
inclined bar screen mono rake by equipwater

Basic & effective equipment

Low maintenance

Completely automatic

The inclined bar screen MONO SCREEN is an automatic mechanical equipment specially designed for channels in wastewater treatment plant WWTP. The raw water filtration is carried out by an inclined wire rack collecting the waste. A single rake with teeth moved by a cable and gravity picks up the waste deposited on the screen. The waste is ejected by a shovel at the top of the machine into a hopper then a dumpster.

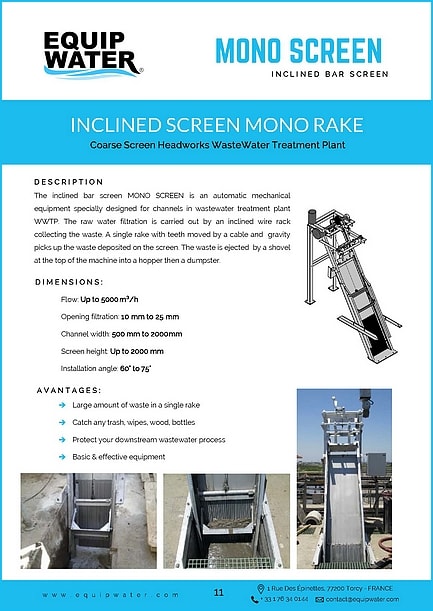

download PDF

 Mono Screen in operation
